Introduction

Ode's dial is one of its most complex parts, and if you find yourself with one that's been disassembled, it can be intimidating to put it back together. There's no need to worry though! Following the video and/or steps below will walk you through the process step-by-step and get you back to brewing!



Video Instructions



Written Instructions

Parts Needed

Before beginning the process of reassembling your Ode's dial, it's important to make sure to have all of the items below at hand. You'll also want a Phillips-head screwdriver for the screws.



Part Reference Photo

Outer dial face

Screenshot 2024-08-14 at 4.03.55 PM.png

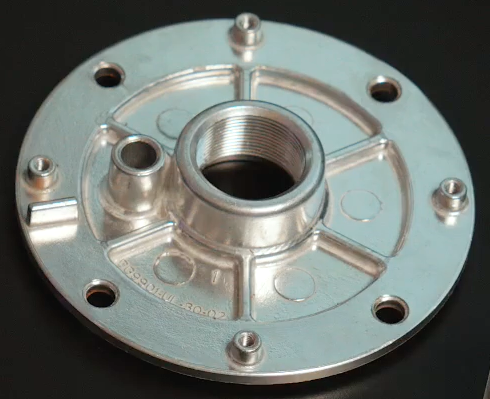

Metal dial assembly housing

Screenshot 2024-08-14 at 4.04.15 PM.png

Threaded ball-bearing shaft

Screenshot 2024-08-14 at 4.04.22 PM.png

Small spring & ball-tip cylinder

Screenshot 2024-08-14 at 4.04.28 PM.png

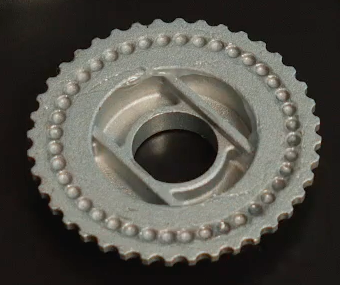

Calibration dial

Screenshot 2024-08-14 at 4.04.33 PM.png

Front dial washer

Screenshot 2024-08-14 at 4.04.37 PM.png

Center dial screw

Screenshot 2024-08-14 at 4.04.40 PM.png

Screws to join the two main sections of the dial assembly together

Screenshot 2024-08-14 at 4.04.44 PM.png

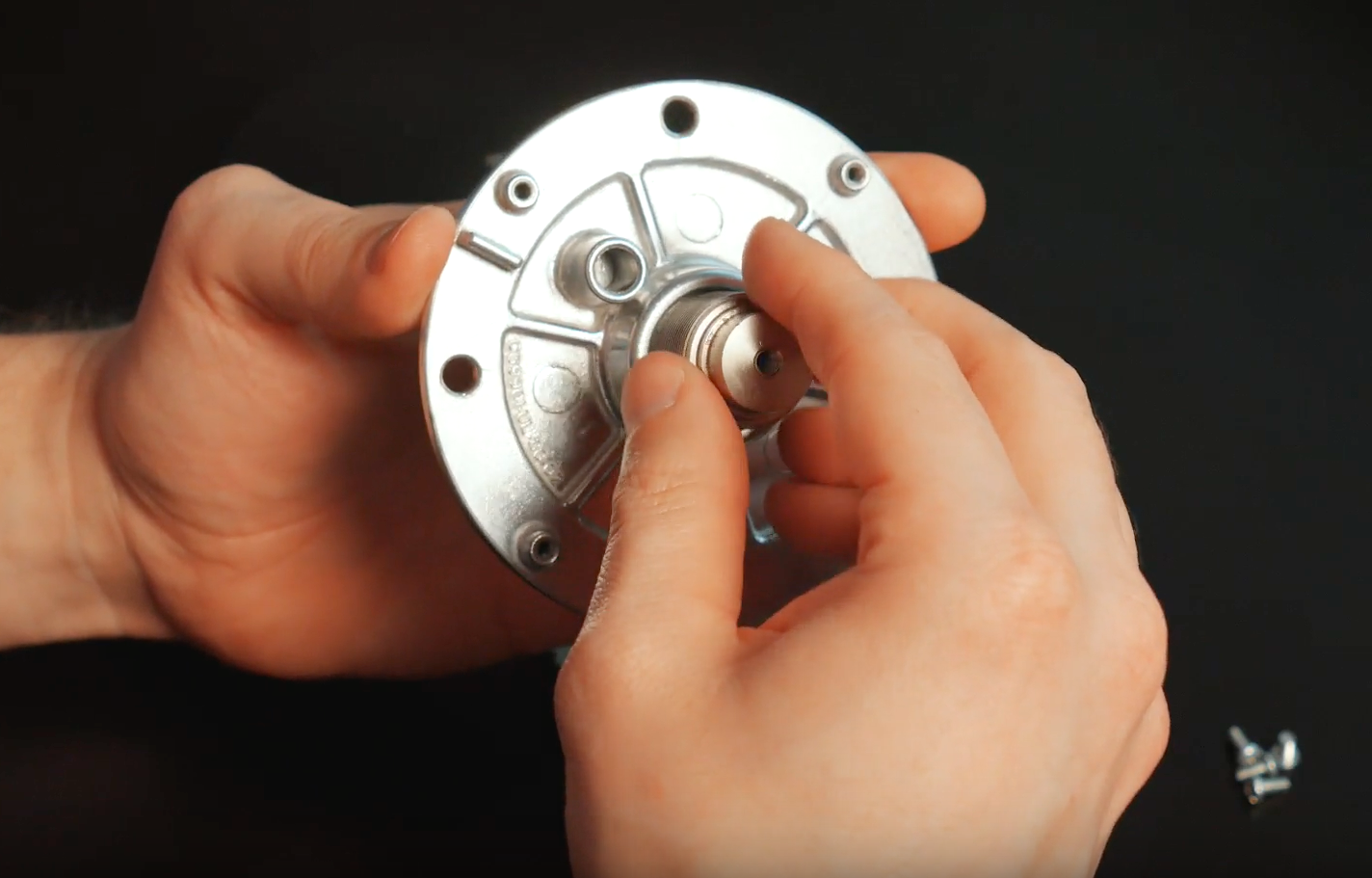

Step 1: Attach the ball-bearing cylinder

Screenshot 2024-08-14 at 4.11.41 PM.png

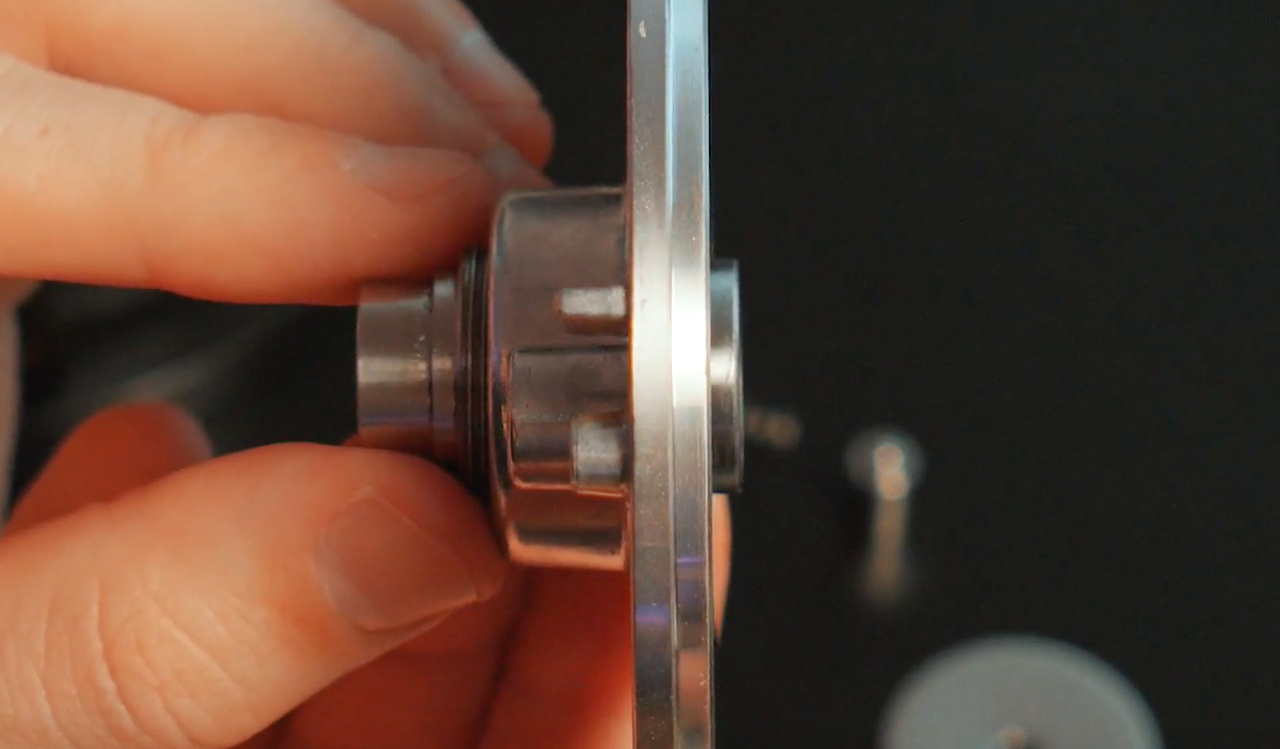

You'll need to turn the shaft counterclockwise to get the shaft correctly in place.

  • Stop screwing it in when you see the ball bearing sticking out a little past being flush with the smooth, backside of the dial.

Screenshot 2024-08-14 at 4.11.51 PM.png

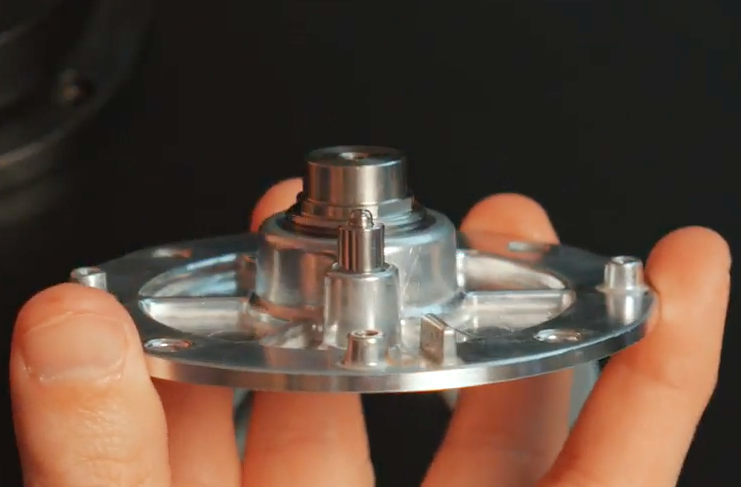

Step 2: Attaching the spring and ball-tip cylinder

Screenshot 2024-08-14 at 4.15.42 PM.png

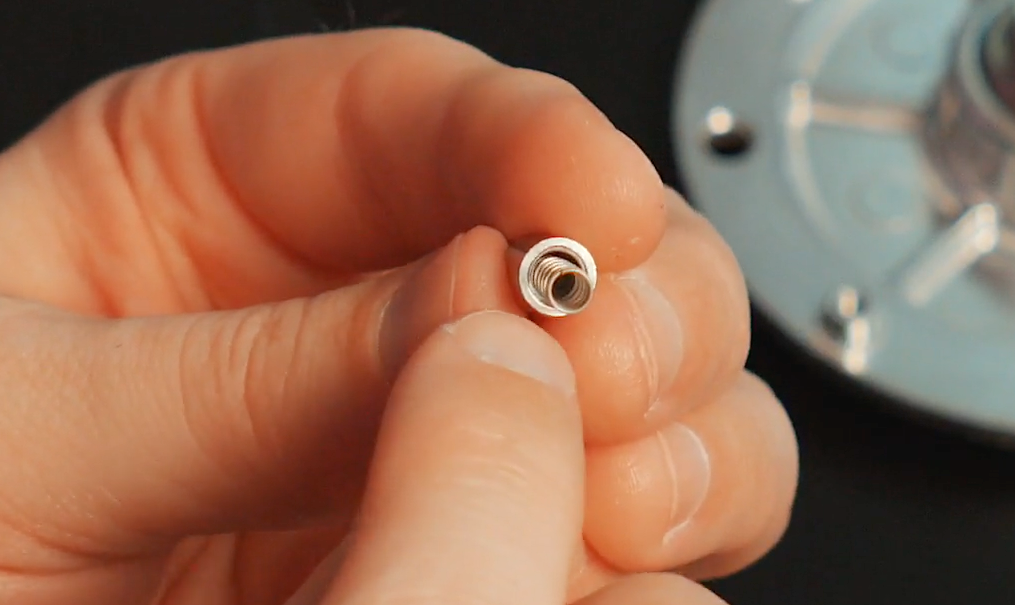

  • Slide them into the open hole beside where you screwed in the ball-bearing shaft. If done correctly, you should be able to push down on the ball tip and have it spring back up underneath your finger.

Screenshot 2024-08-14 at 4.16.09 PM.png



Step 3: Attaching the calibration dial

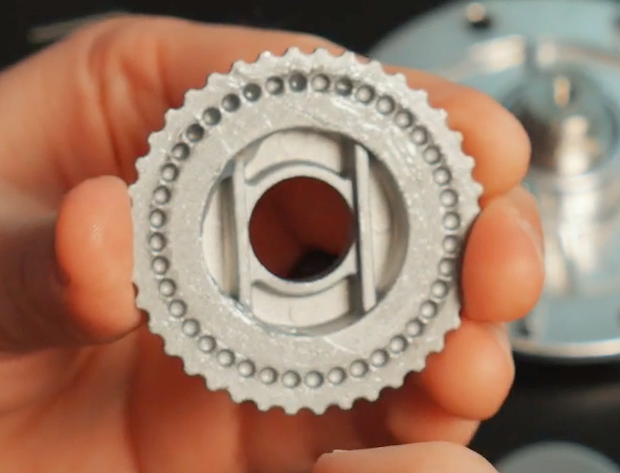

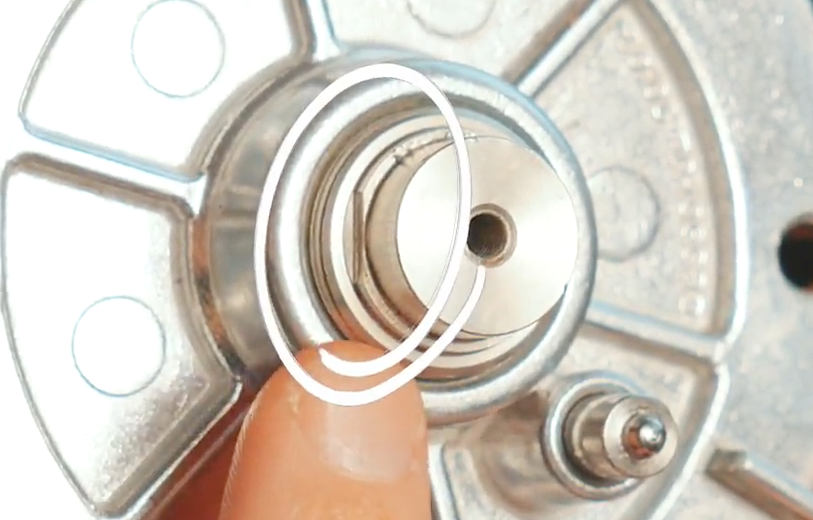

Before attaching the calibration dial, it's important to note that there are two flat ridges on the underside of the dial that match up with two flat ridges on the sides of the ball-bearing shaft. See references below:

Screenshot 2024-08-14 at 4.20.33 PM.pngScreenshot 2024-08-14 at 4.20.47 PM.png

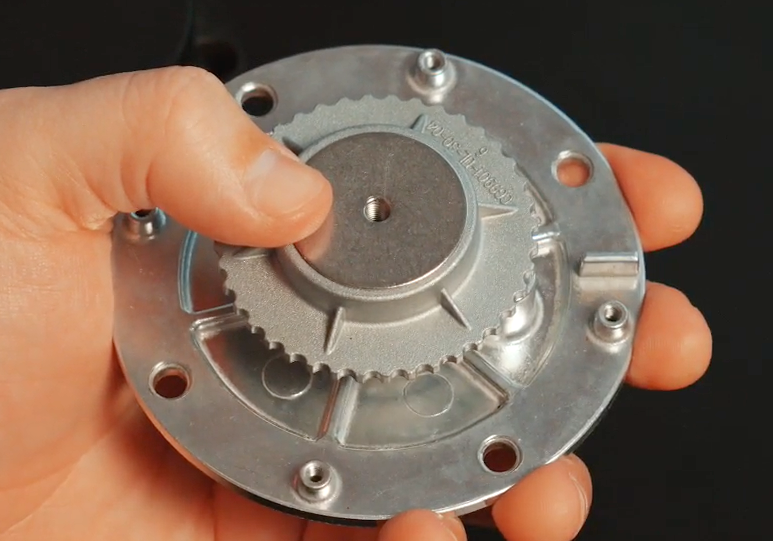

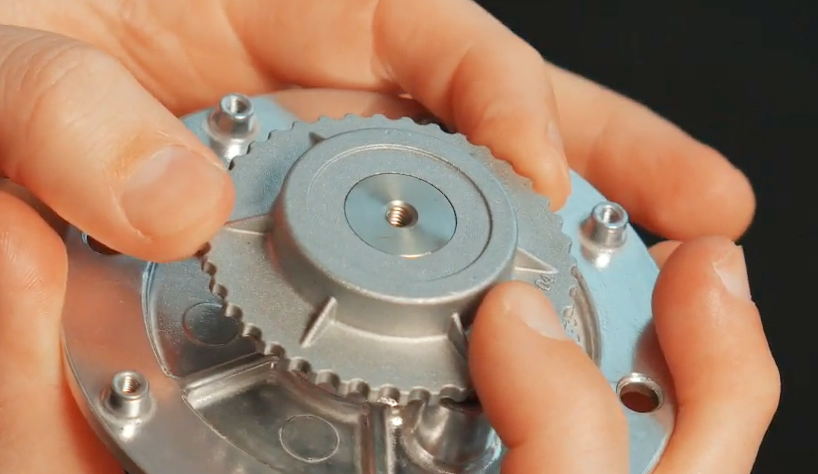

  • Line up the ridges and push down on the dial until it's fully in place. Doing this correctly will result in the top surfaces of the calibration dial and the ball-bearing shaft being flush with one another like in the image below.

Screenshot 2024-08-14 at 4.24.12 PM.png

If the calibration dial isn't sitting perfectly level, that's totally fine. The next step will remedy that without issue.



Step 4: Attaching the dial washer & center screw

  • Grab the front dial washer and the center dial screw.
  • Place the washer over the flat surface you just created in the center of the calibration dial, lining up the holes in the center of the washer and the ball-bearing shaft.

Screenshot 2024-08-14 at 4.28.10 PM.png

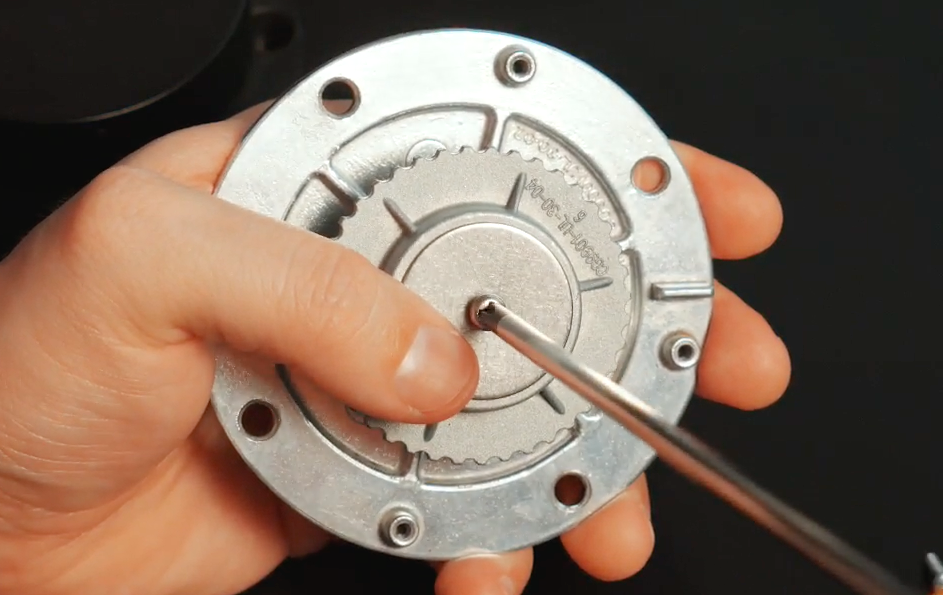

  • Place the center screw in the hole in the center of the washer and screw it in using a Phillips-head screwdriver. We advise against using a drill because of the risk of stripping the screw.
  • Tighten the screw until just when it stops turning, there's no need to over-tighten beyond that point.

Screenshot 2024-08-14 at 4.30.21 PM.png



Step 5: Check your work

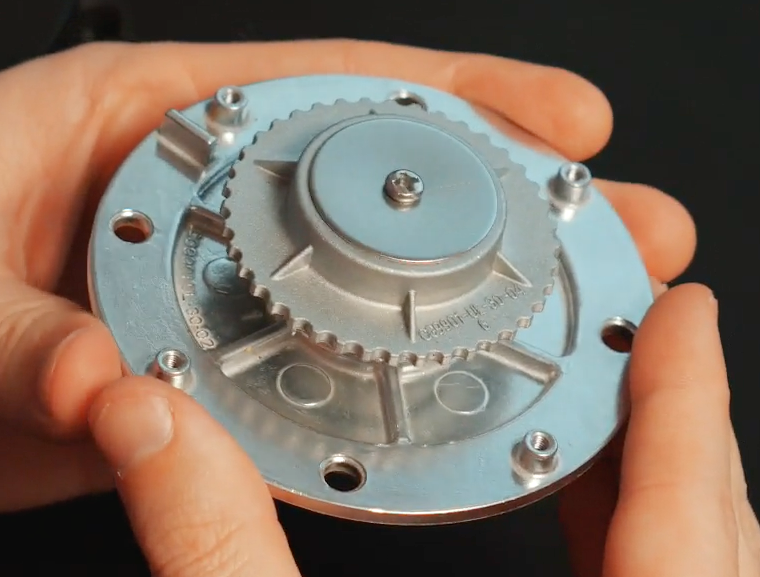

If all went according to plan, your dial should look like the one in the image below. You should also be able to during the calibration dial freely both ways, feeling a stepped click as you turn it.

Screenshot 2024-08-14 at 4.35.57 PM.png



Step 6: Joining the metal assembly and the outer dial face

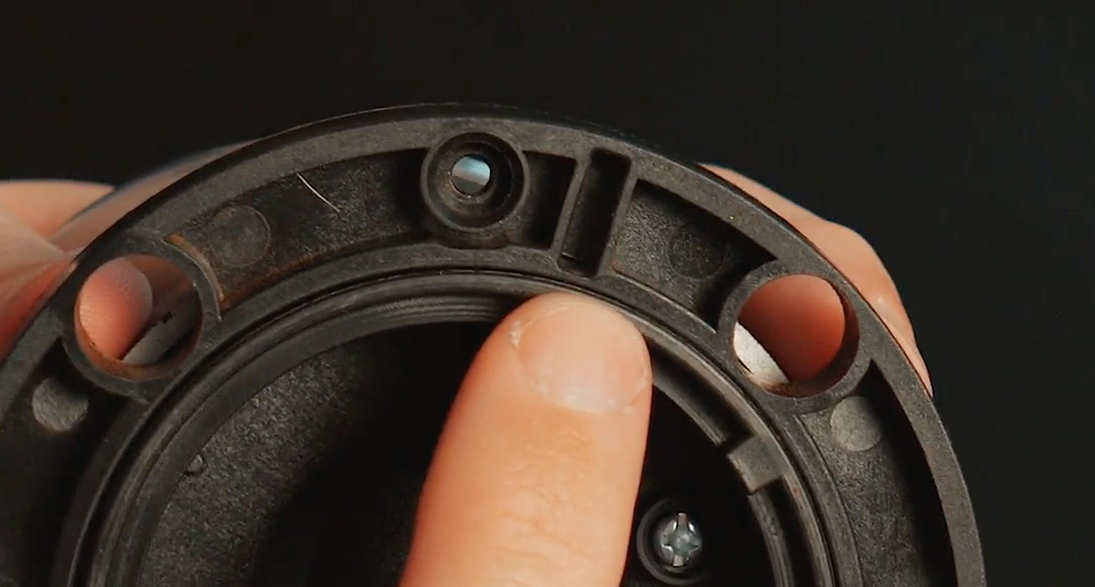

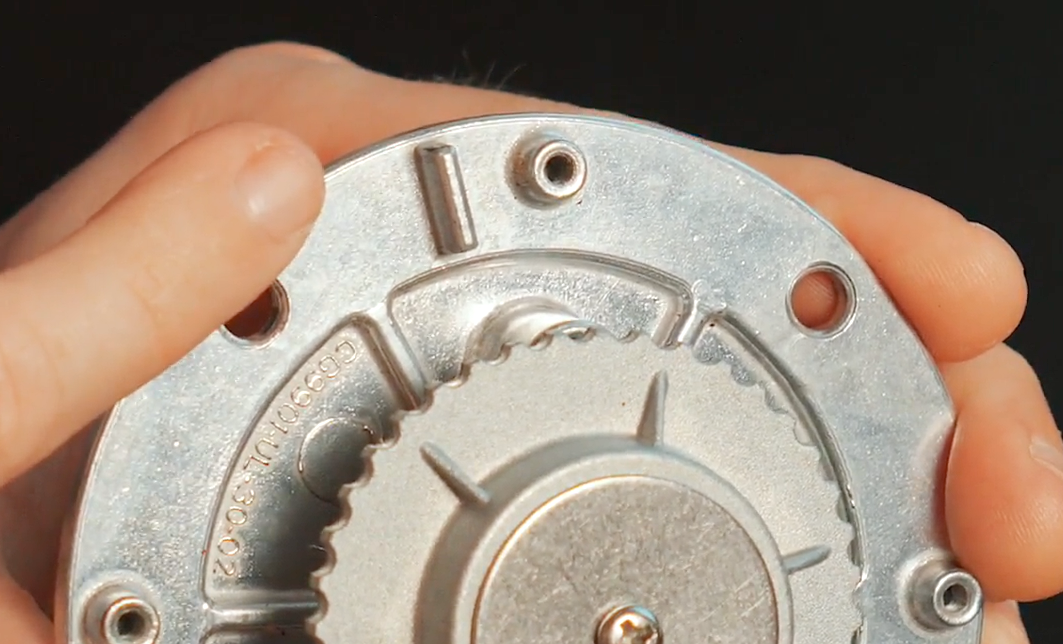

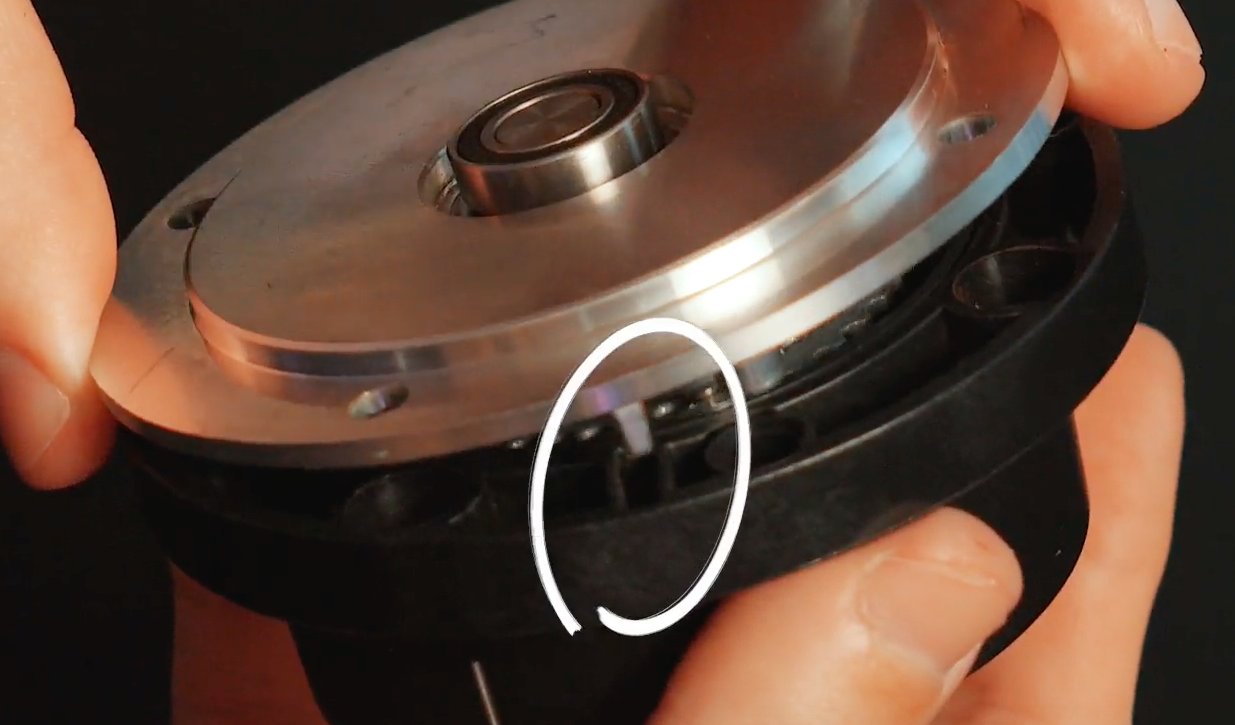

Before moving forward, make note of the metal ridge sticking out of the front of the metal dial assembly housing. This is meant to fit into a matching indention in the back of the outer dial face. See references below.

Screenshot 2024-08-14 at 4.33.31 PM.pngScreenshot 2024-08-14 at 4.33.49 PM.png

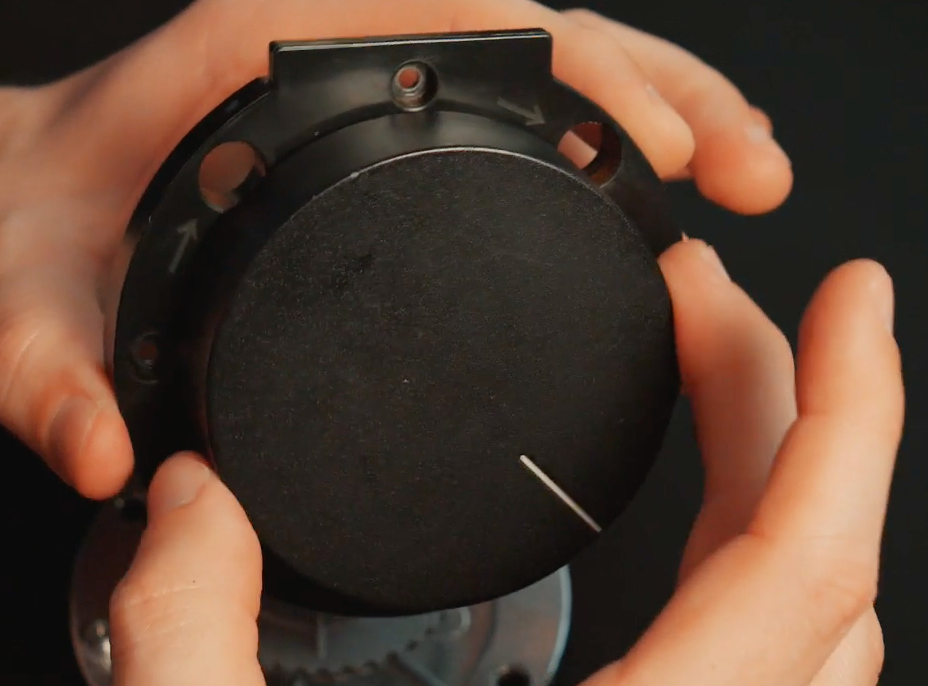

  • Holding the outer dial face with the rectangular piece facing up, turn the dial so that it's as far clockwise as it can go.

Screenshot 2024-08-14 at 4.40.56 PM.png

  • Line up the metal ridge and the intentions mentioned above.
  • Place the ridge into the indention, joining the two parts of the dial together.

Screenshot 2024-08-14 at 4.41.19 PM.png



Step 7: Final assembly

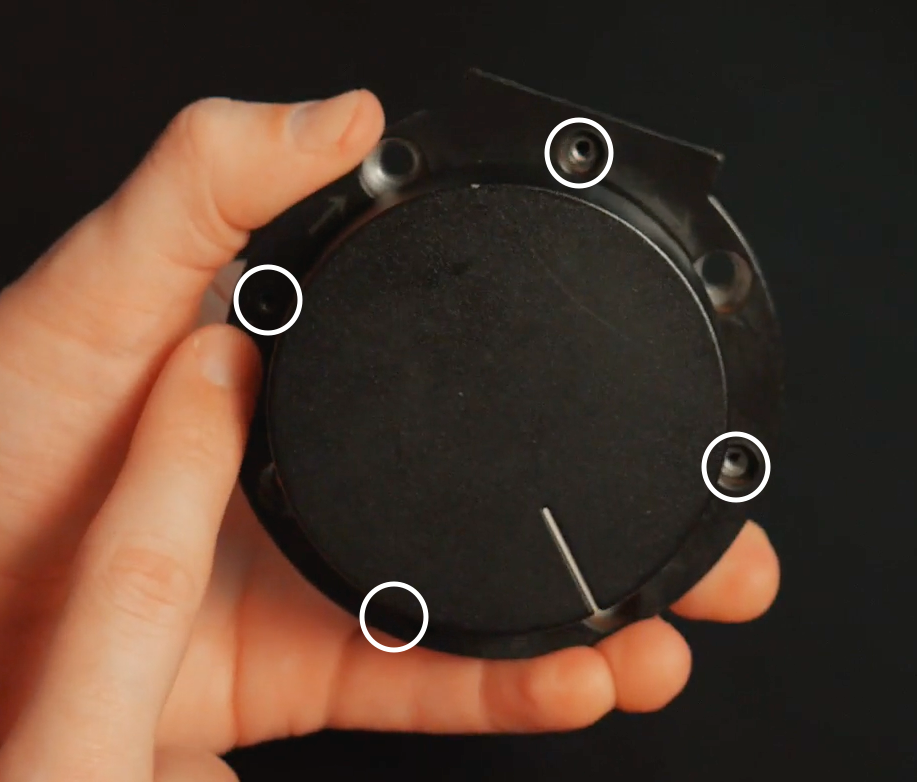

  • Screw in the four remaining screws at the positions at north, south, east, and west, respectively. This will lock the metal dial assembly housing and the outer dial face together.

Screenshot 2024-08-14 at 4.46.09 PM.png

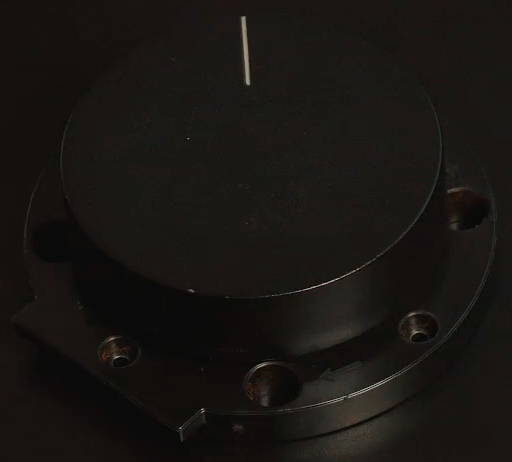

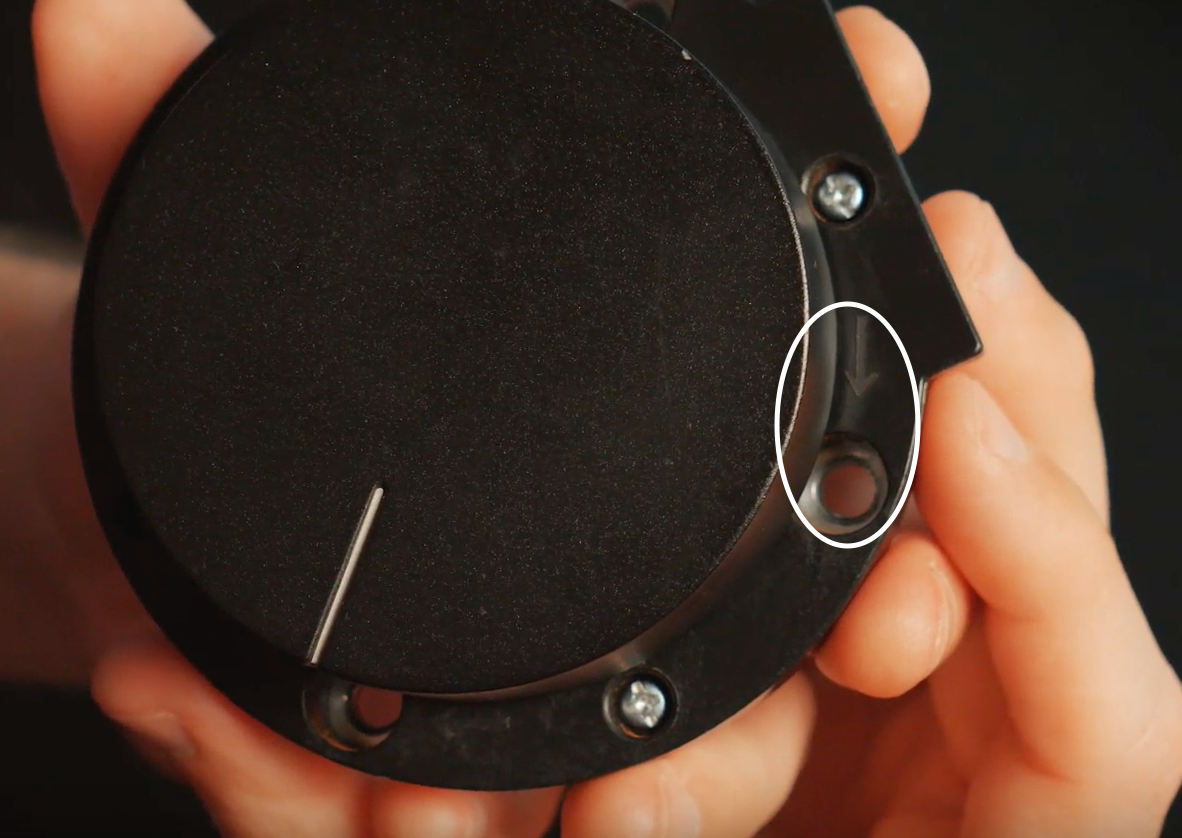

  • Apply the finished dial to the front of your Ode by using the screws/screw holes with the arrows pointing to them

Screenshot 2024-08-14 at 4.47.52 PM.png

As always, please don't hesitate to reach out to us here if you need help or have any questions!
