How do I install and calibrate SSP burrs in my Ode Brew Grinder?

Please make sure you have the multi-purpose SSP Red Speed Coated 64mm Flat Brew Burrs before starting this process*

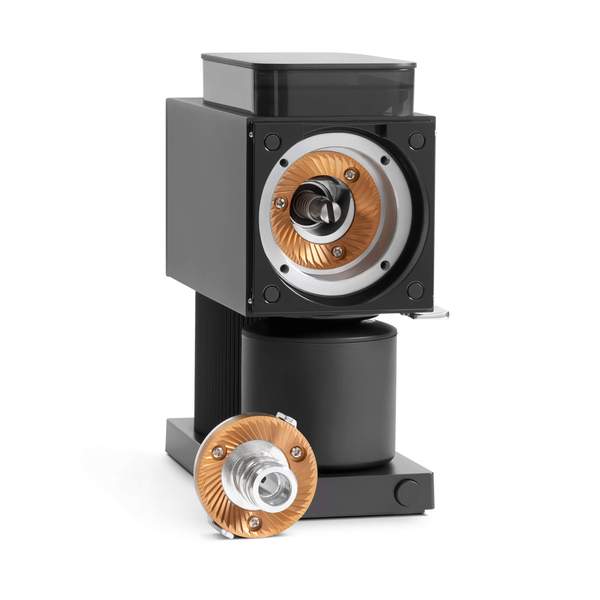

Installation

To replace the stock brew burrs in Ode with the proper SSP burrs, follow the steps laid out in our "How to replace the burrs" video. It is crucial that you adjust your grinder to setting 11 before the installation process.  Also, you must thoroughly clean out your grinder with a brush before installing new burrs to ensure the alignment is correct. If you have a keyboard duster or a shop vacuum available, even better. Once these SSP burrs are installed, you need to calibrate your grinder before grinding coffee.

**Please do not force your SSP burrs into the grinder. If you run into any issues installing your SSP burrs, please reach out to our CX Team for assistance.

Calibration

Please note our "How to calibrate your Ode" video shows how to recalibrate the stock brew burrs, so you will need to modify this procedure to calibrate your SSP burrs correctly. Follow the steps from the video laid out below, but please note the modified steps in bold, which pertain to SSP calibration.

1. Unplug Ode
2. Turn grind dial to setting 11 (do not adjust to setting 1 as instructed in the video)
3. Pull gently on the faceplate to remove
4. Remove the four M3 screws surrounding the dial
5. Pull to remove grind dial to reveal calibration dial
6. Plug Ode back in
7. Press power button
8. Slowly turn the calibration dial counterclockwise
9. When you hear the burrs chirping, stop here
10. Turn the calibration dial clockwise 5 notches (the chirping should stop)
11. Unplug Ode
12. Make sure the grind dial is positioned at setting 1 (rotated all the way to the left)
13. Carefully put the grind dial back in place (do not twist calibration dial while reinstalling)
14. Replace the four M3 screws
15. Press gently to snap on the faceplate
16. Plugin Ode and press power button with no coffee inside
17. You should not hear chirping or click noise at setting 1
18. Grind coffee and enjoy!

Note: It will take roughly 5-10 lbs of coffee to season these SSP burrs, so don't be alarmed if your standard grind setting adjusts within the first 3-6 months of use.

*Using these burrs in Ode to brew espresso will void the warranty. Using any other SSP variant or 3rd party burrs in Ode will also void the warranty. Please reach out to us before you buy 3rd party burrs and/or start the installation process if you have any questions or concerns.
