Shucks! You have to change your auger spring! That’s okay! Let’s spring to it! Here’s how:

Tools needed

Phillips head screwdriver:
Replacement auger spring


Instructions
1. Empty any coffee and unplug Ode
2. Pull gently on the faceplate to remove

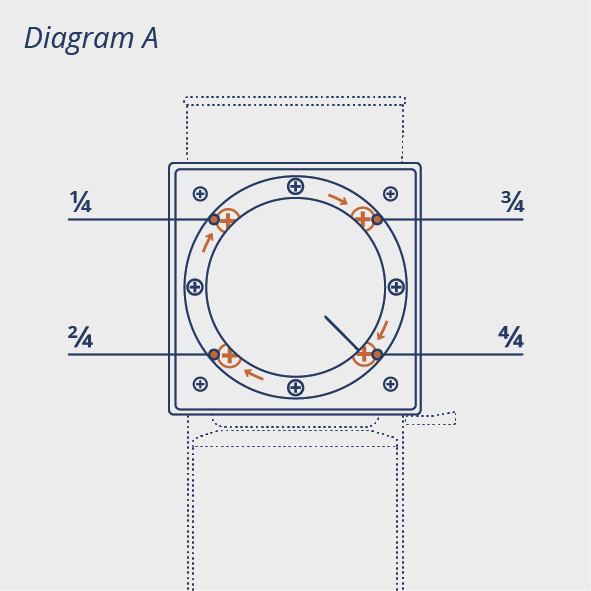

3. Unscrew the four large screws (look for the arrows pointing towards the screws on the grinder)


4. Pull on grind dial to remove

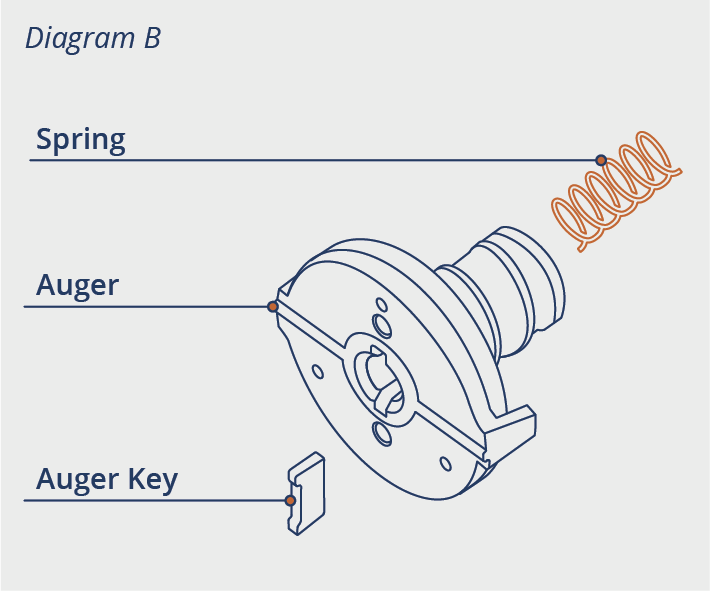

5. Press to remove auger key

6. Quick press to release auger with the rotational burr

7. Remove auger spring



8.  Press auger with the rotational burr into place

9. Press auger key back into place

10.  Rescrew the four large screws to replace the grind dial

11. Press gently to snap on the faceplate



You're all set!
